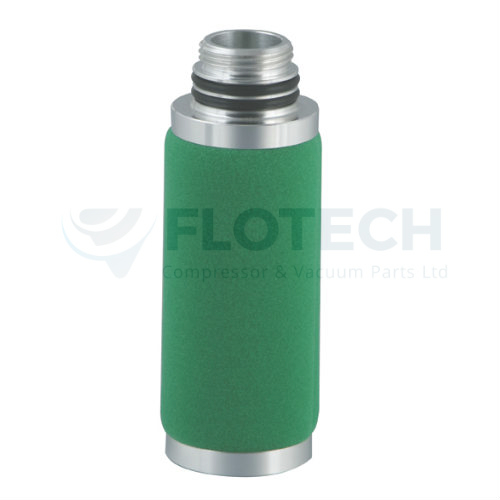

Inline General Purpose Filter Element M Grade (0,1 µm)

53.50190.00

High efficient removal of coarse solid particles oil aerosols and water from compressed air.

Inline General Purpose Filter Element- particulate & coalescing.

Clear

Description

High efficient removal of coarse solid particles oil aerosols and water from compressed air.

Inline General Purpose Filter Element- particulate & coalescing.

Rating According to ISO 8573-1

Solid Particles Class 2
Water Class –
Oils Class 2



Filter media borosilicate micro fibres
Operating temperature 1,5 – 65 °C
Differential pressure 50 mbar
Particle retention (nominal) 99,9999% (0,1 µm)
Particle retention rate ISO 99,98%
Residual Oil Content <0,1 mg/m³



Filter Element Type Pipe Size [inch] Flow Rate [Nm³/h]
0305 1/4 40
0310 3/8 70
0420 1/2 130
0520 3/4 195
0525 1 275
0725 1 1/4 380
0730 1 1/2 495
1030 2 715



Additional information

Filter Element Type - Pipe Size

0305 – 1/4", 0310 – 3/8", 0420 – 1/2", 0520 – 3/4", 0525 – 1", 0725 – 1 1/4", 0730 – 1 1/2", 1030 – 2"
