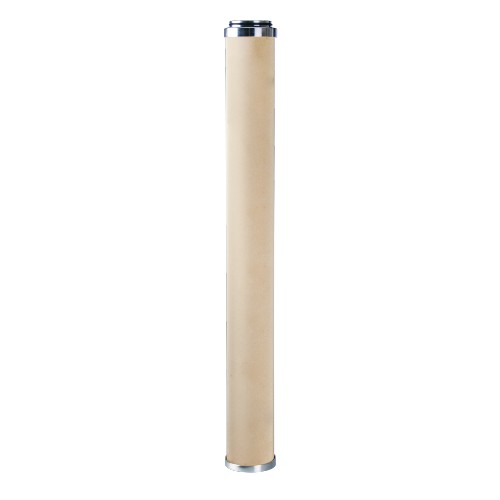

Inline Prefilter Element B Grade (15µm)

25.00213.00

High efficient removal of coarse solid particles and bulk liquids from compressed air.

Description

Inline Prefilter Element- particulate.

Rating According to ISO 8573-1

Solid Particles Class 67
Water Class –
Oils Class –

High efficient removal of coarse solid particles and bulk liquids from compressed air. B filter element can be cleaned with ultrasonic bath or with back flushing. Intervals of cleaning depends of application. If necessary replace filter element with new one.

Filter media sintered brass
Operating temperature 1,5 – 65 °C
Differential pressure 20 mbar
Particle retention (nominal) 15 µm
Particle retention rate ISO

Flow Rate:

Filter Element Type Pipe Size Flow Rate [Nm³/h]
6050 3/8″ 60
7050 1/2″ 78
14050 3/4″ 120
12075 1″ 198
22075 1″ 335
32075 1 1/2″ 510
50075 1 1/2″ 780
51090 2″ 1000
76090 2″ 1500 / 1680
51140 2 1/2″ 2160
75140 3″ 2760
76090 3″ 1680



Additional information

Filter Element Type & Pipe Size

06050 – 3/8", 07050 – 1/2", 14050 – 3/4", 12075 – 1", 22075 – 1", 32075 – 1 1/2", 50075 – 1 1/2", 51090 – 2", 76090 – 2", 51140 – 2 1/2", 75140 – 3", 76090 – 3"
