Oil/Water Condensate Units – OWSm

OWSm water oil separators have been developed to separate lubricant oil from condensate generated in compressed air systems.

Technical Data:

Please call us on +353 1 846 4303 for quotation or any queries.

Description

Description:

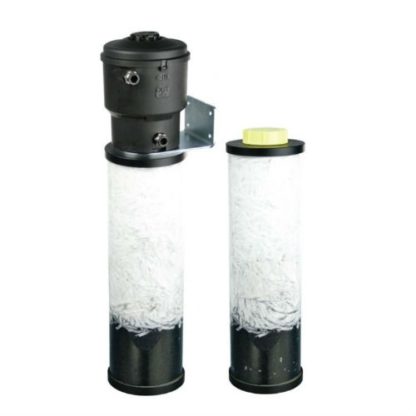

OWSm water oil separators have been developed to separate lubricant oil from condensate generated in compressed air systems. Due to patented technology regular service can be done in 30 seconds without any cleaning. Separation begins in “cyclonic depressurization chamber” and continues in “filter cartridge”. When the “filter cartridge” is fully saturated you just simply unscrew complete cartridge and replace it with new one. All the condensate stays in old cartridge which can also be sealed with plastic cover and disposed according to local directives and laws.

Characteristics:

Operating Temperature: 1,5 to 65 °C

Inlet Connection: ∅8mm

Applications:

  • Compressed Air System
  • Suitable for installation inside compressors
  • Compressed air dryers
  • Condensate separators
  • Pressure vessels
Model         Flow Rate                (15 °C 60%RH / 25 °C 60%RH / 40 °C 100%RH) Dimensions Mass
A B C D E kg
OWSm 1 1,23 / 1,08 / 0,62 483 106 80 335 50 1.21
OWSm 2 2,54 / 2,23 / 1,28 816 106 80 670 50 1.75

Separator Elements:

Model Housing
OWS-m1 CKL-CHP 003
OWS-m2 CKL-CHP 005

Water Quality Test Kit:
